Tus tswj hwm ntse rau RGB teeb Programmable

XB-C100 Kov-Screen Smart Tswj Txoj Cai- Tus Sau Ntawv







1. XB-C100 tus kws sau ntawv sau npe: muaj cov tshuaj ntsuam pom, ua haujlwm yooj yim
2. XB-C100 Txhawb Kev Ua Haujlwm Txheej Txheem Txheej Txheem Tshaj Tawm .
3. XB-C100 tus kws sau ntawv tau tsim lub roj teeb, uas tuaj yeem ua haujlwm tsis tu ncua rau 10 teev.
4. XB-C100 Coder txhawb nqa lub ntsiab masterstream dmx512 nti, thiab tuaj yeem sau cov code thiab sau cov ntsuas rau dmx512ic.
5. XB-C100 tus kws sau ntawv tuaj yeem sim DMX53Ic teeb Channel chaw nyob thiab kuaj cov nyhuv.
6. XB-C100 Coder Chaw nres nkoj ua kom tau cov zis ua kom zoo dua qub, uas tuaj yeem nqa cov khoom siv TTL / DMX512}}}
7. Tus XB-C100 Coder tuaj yeem nqa 512/2048 Pixels ntawm feem ntau (qhov siab tshaj plaws 512 pixels ntawm xoo hluav taws xob siv peb cov piv txwv).
8. XB-C100 Coder 22 Built-in cuam tshuam (Yeem3- channel / {} Cov channel built-ins) .
9. XB-C100 Coder tuaj yeem tso rau SD daim npav ua si cov nyhuv (software nyhuv tawm yog xaiv raws li ntawm k {} c mtroller {}}





Cov ntsiab lus ntawm coder interface thiab taw qhia lub teeb
Tus nab npawj	lub npe	Chaw Nres Nkoj Vijtsam Ntsuam Xyuas	zaj piav
1	Them Them Chaw nres nkoj	VCC / GND / VCC	DC DC 12-24 V Khoom Siv Hluav Taws Xob
2	Ntsuas Hluav Taws Xob	Hwjchim	Lub Zog Hluav Taws Xob (ib txwm muaj tom qab pib)
3	Cov xwm txheej qhia	Nyob li cas	Cov xwm txheej qhia
4	SD daim npav qhov	Sd	SD daim npav Slot (Player)
5	Teeb paib tso zis chaw nres nkoj	GND / A / B / Addr	Ib Leeg Kab Dmx512 Chaw Nres Nkoj
6	USB Them Chaw nres nkoj	Dc5v	USB 5V DC Khoom Siv Hluav Taws Xob
7	lub khawm yus nias	Lub khawm yus nias	Coder Hloov

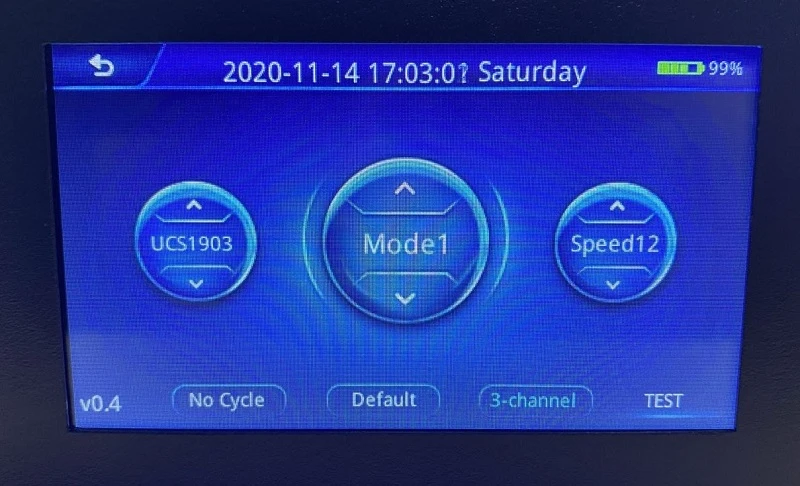

8	KAIS VAJ HUAM SIB LUAG	----	Vaj Huam Sib Luag Haujlwm (Kov Screen)





Kev Yees Duab Hluav Taws Xob ntawm DMX512 Cov Kablus Sib Txawv

Cov Neeg Siv Khoom Siv Daim Duab Ntawm DMX512 Ib Leeg Kab Teeb Liab Kab Hlau Teeb Meem Diagram (chaw nyob ntawm AB Kab)





Kev Ua Haujlwm Kub: {{-20℃-- 85 degree

Lub Zog Hluav Taws Xob: DC 5V {{{} v tawm tswv yim (built-in roj teeb) muaj peev xwm: 128mb {4 ...} gb

Roj teeb muaj peev xwm: 4000mAr format: rog lossis fat32 hom

Kev Siv Fais Fab: 4W File Cia: * . Led

Cov ntaub ntawv hloov chaw nres nkoj: 4PIN Terminal

Qhov hnyav: 1.7 kg

Nti: L140MM * W100mm * H40MM
