Ntse Teeb Ntawm Eaves Facades

EAVE LIGHTS DATASHEET
Xim Xim	RGBIC-Magic Xim
Qhov hluav taws xob	DC 36 V
Max.Power	72W
Base Daim kab xev Xim	Dawb los yog Dub
Tswj txoj kev	APP/Voice Control
Lub Suab Tswj	Google Tsev, Alexa, Tmall Genie
Lens Beam Lub kaum sab xis	120 degree
Hwj chim	1.8 Weach LED; 12.6W txhua strip (12leds / sawb); 129.6W txhua lub teeb; 72leds txhua lub teeb.
Txuas raws tu qauv	2.4GHz WiFi + Bluetooth
Paub meej	Ib txoj hlua yog 5meters nrog 12leds; Ib txheej muaj 6 strips; Txhua lub strip tuaj yeem tswj tau ntawm nws tus kheej.
Ua haujlwm kub	-4 degree F ~ 140 degree F (-20 degree ~ 60 degree)

Khoom npe	Sab hauv		Sab nrauv Carton
	Qhov hnyav	Kev ntsuas	Qty / Ctn	Loj	Qhov hnyav
Eave Teeb	2.2 KG	36 * 33 * 6cm	10 Pcs	37 * 34 * 62cm	22.5 KG





Khoom siv	Lub npe	Specification	Ntau	Lus ceeb toom
	Txoj hlua teeb	36V-5M-12LEDs/Strip Tag nrho ntev: 30M	6	Hlau ntev ntawm ob LEDs: 400mm Ntev input & output hlau: 200mm
	Tus tswj	105 * 60 * 28mm	1	Cable ntev: 295cm
	Fais fab adapter	Ua haujlwm voltage: 36V	1	Plug hlau ntev: 70cm Cable ntev txuas nrog xws li: 195cm
	Mounting clamp	Ntev: 33mm dav: 21mm	10 Pcs
	Clip	20.32 * 27.94 nti	24 Pcs
	Gum	Txoj kab uas hla: 30mm	12 Pcs



















Rub tawm "Surplife" APP los ntawm Apple Store thiab Google Play Store, lossis luam theej duab QR code.





1) Sau npe / Nkag mus rau koj tus account Surplife.





2) Qhib koj lub xov tooj Bluetooth, qhib lub cuab yeej.

3) Nkag mus rau "Surplife" app, coj mus rhaub "Add Device" lossis nyem "+" ntxiv rau lub cuab yeej. Tom qab ntawd xaiv koj lub network Wi-Fi (tsuas yog ua haujlwm nrog 2.4Ghz network), sau tus password.





4) Lub npe ntaus ntawv tuaj yeem hloov kho thiab xaiv chav tsev tom qab ua tiav txuas rau Wi-nkaus network.











1) Hauv kev teeb tsa interface, koj tuaj yeem teeb tsa IC qauv, kho xim, cov ntsiab lus (Tag nrho cov ntsiab lus tsis tuaj yeem tshaj 300 hauv txhua ntu thiab tag nrho LED chips kom tsis pub dhau 2048)

2) Kev teeb tsa ntawm IC tus lej yog siv rau kev ua haujlwm smearing







1) Ntau yam xim

Cov xim ntawm lub teeb tuaj yeem hloov kho los ntawm tag nrho thiab txhua ntu. App muab cov kab sib txawv rau kev xaiv xim orediting, thiab qhov ci tuaj yeem hloov kho. Nyob rau hauv segmentation interface, cov neeg siv tau ywj siab smearor lwv cov xim ntawm txhua ntu, ana kuj teem cov nyhuv gradient.





2) Kev teeb tsa Scene
Muaj FourBuild-in scenes: "Lub neej", "Scenery", "Festivals", "Zoo siab", thiab nias "DIY" los yog





3) Playlist hom

Ntau lub teeb dynamic hom ua rau hauv, tuaj yeem teeb lub sijhawm teeb pom kev zoo thiab nkag mus rau hom voj voog. Xaiv qhov sib txawv scene hom, ces teem lub du ration ntawm txhua scene feem, thiab ua si nws los ntawm combining lub sequence ntawm txawv teeb pom kev zoo.





4) Smearfunction

Nyem "+"rau DIYthe lightingcolorand dynamic effectsthensave nws.

Ua ntej DIY, thov teev tus naj npawb ntawm IC hauv "Chaw" kom paub meej tias cov teeb pom kev zoo sib xws nrog lub cuab yeej, Txwv tsis pub, cov teeb pom kev zoo tsis raug.
Ua ntej kho, thov xyuas kom meej tias tus lej IC hauv appsetting yog tib yam li lub teeb devi ce, txwv tsis pub, cov teeb pom kev zoo yuav tsis raug.

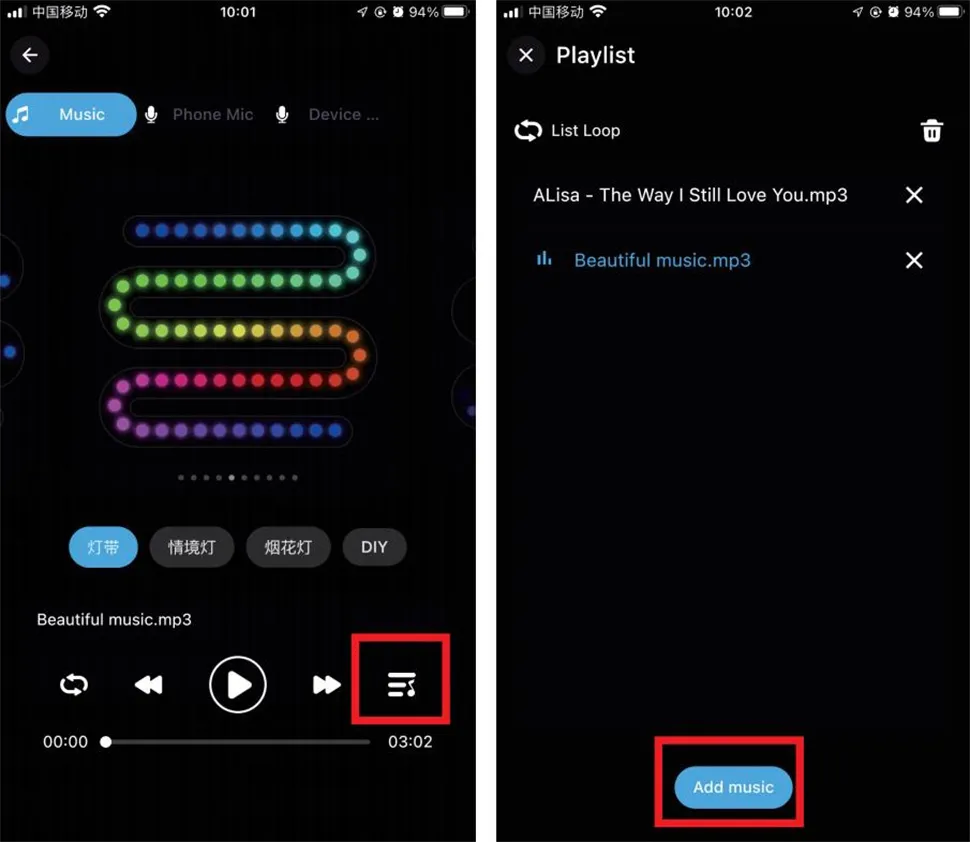

5) Hom suab paj nruag

1. Synchronization muaj nuj nqi ntawm lub teeb pom kev zoo thiab suab paj nruag atherosclerosis.
Nyem "Ntxiv Music" > Importa cov ntaub ntawv suab paj nruag orimport nws los ntawm lub tsev qiv ntawv suab paj nruag built-in.

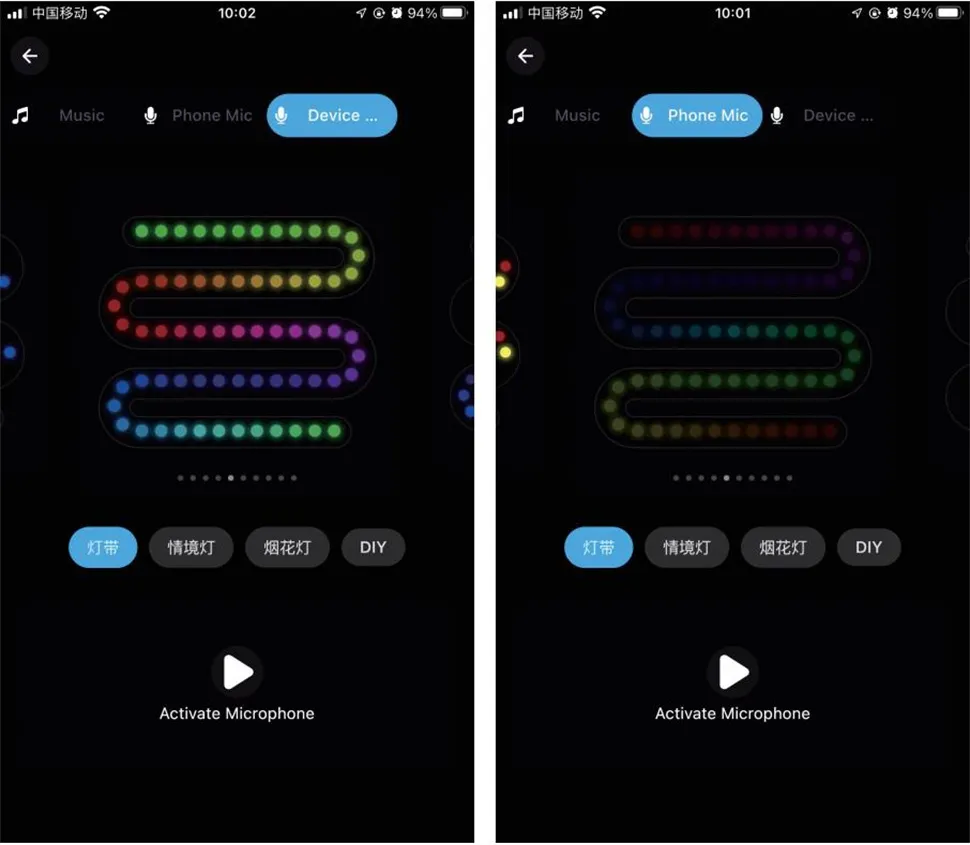

2. MIC
Lub teeb xim yuav hloov nrog lub suab nrov thaum koj lub xov tooj microphone ntes lub suab. Lub microphone rhiab heev tuaj yeem hloov kho los ntawm cov slider.Muaj ob txoj hauv kev los tso lub suab kos npe kuv rau ntawm tus maub los, ua hauv APP microphone thiab lwm lub microphone (Rau suab tswj version).





6) Lighttimer
Smartlights cia li tuaj thiab tawm ntawm lub sijhawm dhau los ntawm lub sijhawm ua haujlwm, xaiv cov nyhuv uas koj nyiam thiab xim ces txuag nws.





7) Pawg Tswj Xyuas
Qhov no modeallows koj los tsim cov pab pawg sib txawv los tswj ntau tshaj ib tus tswj hwm tib lub sijhawm.





8) Link
Teem ib pab pawg rau lub teeb sawb, txaus siab rau qhov txuas teeb pom kev zoo. Tuav thiab dragthe deviceonthe daim ntawv los hloov qhov kev txiav txim thiab cov kev taw qhia.
① Lub teeb ci ntsa iab ua ke synchronized Linkage
② Cov kab teeb pom kev sib koom ua ke hloov zuj zus




9) Kua IOS system widget ntxiv (tseem txhawb nqa Android xov tooj)
Cov kauj ruam:
1.Tsim ib qho chaw rau koj lub teeb, thiab ntxiv cov lus txib rau nws thaum koj siv widget.





2. Enterthe page"Profile" > Tap"Widget" >Ntxiv thesceneto Widget.Tom qab ntawd Ntxiv "Surplife" app rau Widget





10) SiriShortcuts-IOS
Nco tseg:
l. Si ri tsuas muaj peev xwm tswj tau qhov scene.
2. IOS 12.0 thiab saum toj no systems havetheirrown shortcut muaj nuj nqi. 3. Pls xyuas kom koj lub cuab yeej yog "Cloud Online".





3. Nkag mus rau nplooj ntawv "Profile" > Coj mus rhaub "Siri Shortcuts"> Ntxiv qhov scene rau ntawm no.





4. AskSiri: Qhib {Scene Name}



11) Third-tog platform
Koj tuaj yeem xaiv qhov thib peb lub suab pabcuam platform (Alexa, Google Tsev, Tmall Genie, thiab lwm yam) thiab khi lub platform raws li kev taw qhia. Tom qab kev sib txuas ua tiav, koj tuaj yeem pib lub suab tswj, uas yooj yim thiab ceev.





A) Thov siv cov khoom hauv qhov chaw qhuav.

B) Rau inputvoltage, thov siv qhov hluav taws xob DC nyob rau hauv qhov tshwj xeeb raws li qhia hauv phau ntawv, yuav tsum tsis txhob txuas rau 220V AC ncaj qha.

C) Cov khoom yog thov kev sib txuas anode. Qhov kev sib txuas tsis raug yuav ua rau muaj kev ua haujlwm tsis zoo.
